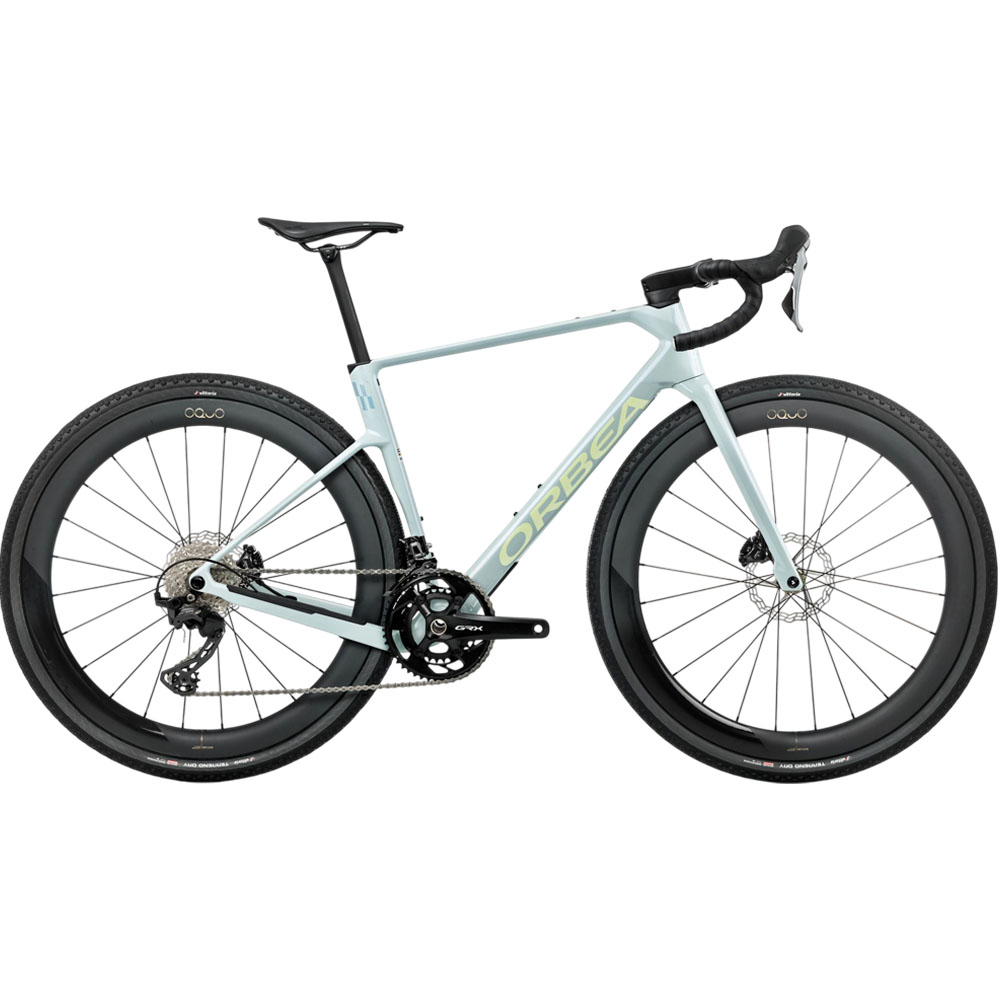

2026 Orbea TERRA RACE M20LTD Road Bike
The 2026 Orbea Terra Race M20LTD Road Bike is engineered for riders who demand speed, precision, and versatility across mixed terrain. Built on Orbea’s advanced carbon platform, this high-performance gravel race machine blends lightweight efficiency with exceptional stability, making it ideal for competitive gravel events, endurance rides, and fast-paced road adventures.
At its core, the Terra Race features a premium full carbon monocoque frame and fork, optimized for aerodynamic efficiency and vibration damping. The geometry is race-focused yet comfortable, delivering aggressive power transfer while maintaining control on rough surfaces. Internal cable routing enhances both aerodynamics and aesthetics, giving the bike a clean, pro-level finish.
Equipped with a Shimano GRX high-performance drivetrain, the M20LTD ensures smooth, reliable shifting under all conditions. Whether you're climbing steep gravel paths or sprinting on paved roads, the precision gearing system keeps you in control. The hydraulic disc brakes provide consistent stopping power in wet or dry environments, boosting confidence on technical descents.
Rolling on lightweight, tubeless-ready wheels paired with high-traction gravel tires, the Terra Race M20LTD offers excellent grip, reduced rolling resistance, and enhanced puncture protection. Generous tire clearance allows riders to adapt to different terrains, from compact dirt roads to rugged trails.
Designed with endurance in mind, this bike includes multiple mounting points for bottles and accessories, making it perfect for long-distance rides and bikepacking setups. The ergonomic cockpit and vibration-absorbing design reduce fatigue, allowing you to ride longer and faster.
SPECIFICATION
| FRAME |
Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
|
|---|
| Fork
|
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
|
|---|
| Steerer tube
|
FSA 1-1/2" Integrated Aluminium Cup
|
|---|
| Crankset
|
Shimano GRX RX820 31x48t
|
|---|
| Cassette
|
Shimano 105 R7100 11-34t 12-Speed
|
|---|
| Front derailleur
|
Shimano GRX RX820
|
|---|
| Shifters
|
Shimano GRX RX820
|
|---|
| Rear derailleur
|
Shimano GRX RX820
|
|---|
| Chain
|
Shimano M7100
|
|---|
| Handlebar
|
OC Gravel GR10 Carbon, Reach 70, Drop 110
|
|---|
| Stem
|
OC Road Performance RP10, -8º
|
|---|
| Brakes
|
Shimano RX820 Hydraulic disc
|
|---|
| Brakes Configuration
|
N/A
|
|---|
| Wheels
|
Oquo Road Performance RP50LTD
|
|---|
| Front Wheel Axle
|
Orbea Thru Axle 12x100mm M12xP1 Lite
|
|---|
| Tyres
|
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x40c
|
|---|
| Rear Wheel Axle
|
Orbea Thru Axle 12x142mm M12xP1 Lite
|
|---|
| Seatpost
|
OC Performance XP10 Carbon, 27.2mm, Setback 0
|
|---|
| Saddle
|
Selle San Marco Shortfit 2.0 Start Up Off Road
|
|---|
| Handlebar Tape
|
Orbea Anti-Slippery/Shock Proof
|
|---|
