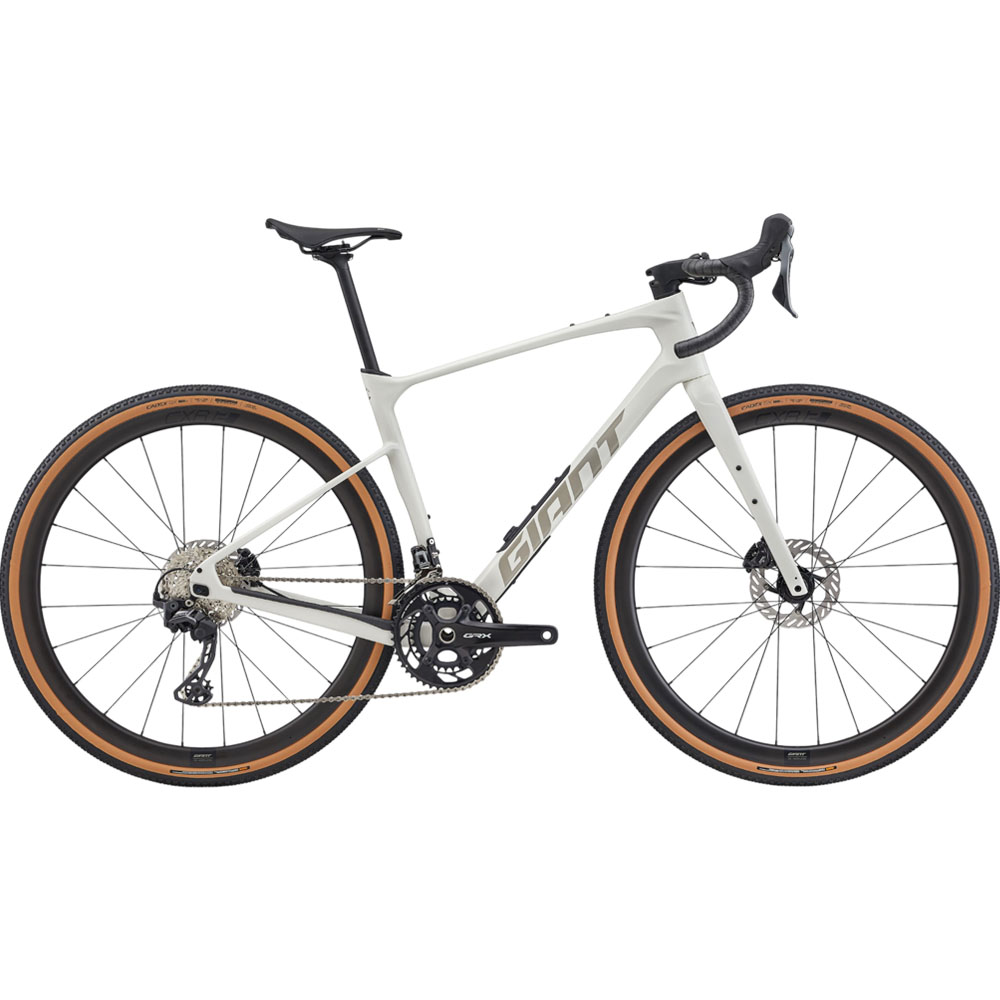

2026 Giant Revolt Advanced 0 Road Bike

Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATION

FRAME Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse SL, composite, -5/+15mm offset
Saddle Giant Grit
Pedals no pedal [GA, Pan-Eu], platform pedal [GU, GV, GJ]
Shifters Shimano GRX RX-820, 2x12
Front Derailleur Shimano GRX RX-820
Rear Derailleur Shimano GRX RX-820
Brakes Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake Levers Shimano GRX RX-820 hydraulic
Cassette Shimano CS-HG710, 12-speed, 11x36
Chain KMC X12L-1
Crankset Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket Shimano, press fit
Rims Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm
Hubs [F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires CADEX GX, 700x40c, tubeless
Extras tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tire Clearance 53mm
