| FRAME |

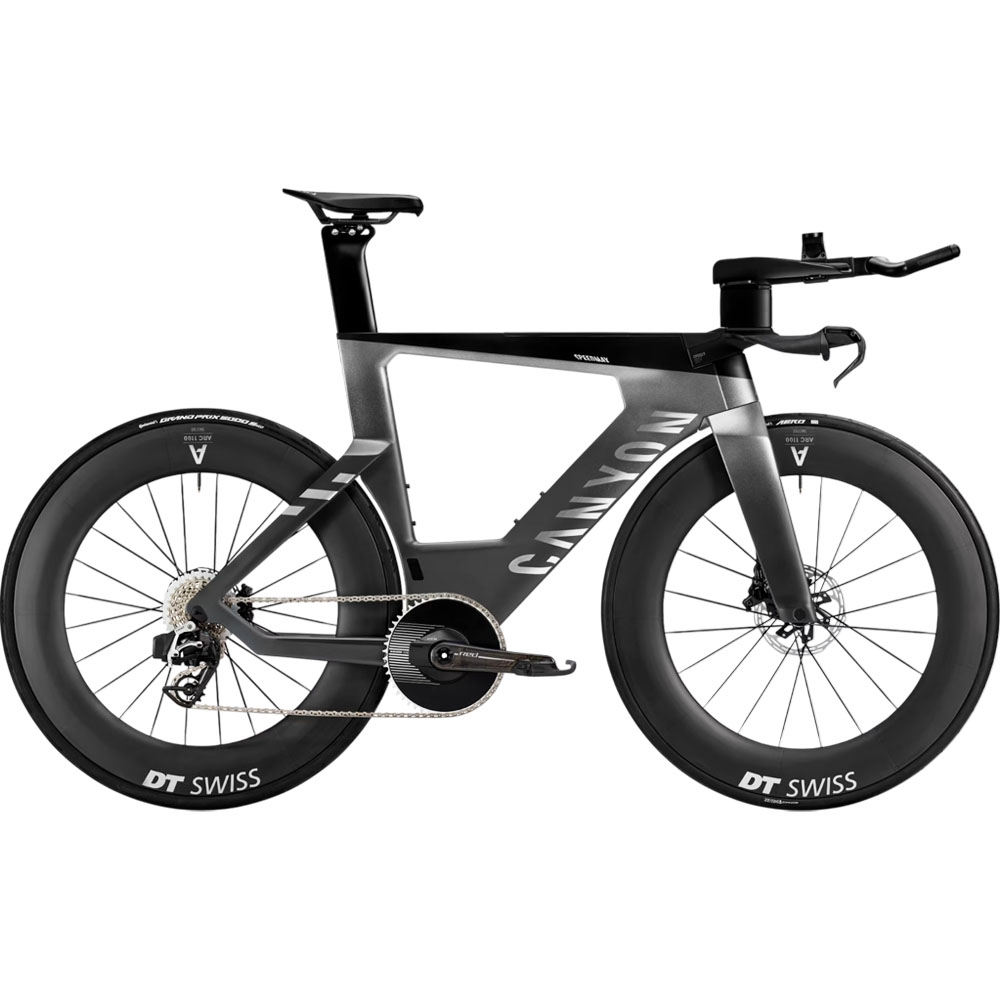

Canyon Speedmax CFR, Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard., Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CFR), Weight: 1,573 g
BB Standard: BB86/BB92, 86mm, Press Fit
Tire Clearance: 30c
Colors: Vapor Black/ Sleek Silver/ Electric Ocean
|
|---|
| FORK |
Canyon FK0080 CF Disc, Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved., Axle dimension: 12x100 mm, Fork steer tube diameter: 1 1/4", Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 632 g
|
|---|
| Bottom Bracket
|
SRAM DUB Pressfit, Bottom bracket standard: PF 86,5, Weight: 67 g
|
|---|
| Handlebar
|
Canyon GP0243 Aerobar | Canyon EP1412-01/EP1413-01 Armpad Kit, Premium Ergon armrests providing superior comfort and support. Inspired by Jan Frodeno's custom 2019 cockpit setup. | Canyon EP1466-01/EP1467-01 Pro Velcro Kit, Attachment kit for Ergon armpads. | Canyon GP0377 Aerobar, Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance. | Canyon EP1418-01 Pad Support, Sturdy high-grade support plate for Speedmax cockpit armpads.
|
|---|
| Saddle
|
Fizik Transiro, Gender: Unisex, Weight: 187 g
|
|---|
| Seatpost
|
Canyon SP0049 Aero Seatpost, Speedmax triathlon seatpost, specifically designed for pure aero performance, non-UCI-compliant profile., Material: Carbon (CF), Weight: 154 g
Type: Rigid
|
|---|
| Pedals
|
None included
|
|---|
| Rear Derailleur
|
SRAM Red AXS Rear Derailleur, Weight: 264 g
|
|---|
| Crank
|
SRAM Red AXS Aero Powermeter, Number of chainrings: 1
|
|---|
| Power Meter
|
SRAM Red AXS Aero Powermeter, Number of chainrings: 1
|
|---|
| Shifters
|
SRAM eTap Clics, Weight: 33 g
|
|---|
| Cassette
|
SRAM Red, Number of sprockets: 12, Range: 10-33
|
|---|
| Chain
|
SRAM RED
|
|---|
| Brakes
|
SRAM S-900 Aero HRD, Number of pistons: 2, Weight: 282 g | SRAM S-900 Aero, Number of pistons: 2, Weight: 335 g
Type: SRAM Hydraulic Disc
|
|---|
| Brake Levers
|
SRAM S-900 Aero HRD, Number of pistons: 2, Weight: 282 g | SRAM S-900 Aero, Number of pistons: 2, Weight: 335 g
|
|---|
| Rims
|
Front: DT Swiss ARC 1100, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 85 mm, Inner width: 22 mm, Rim material: Carbon, Weight: 900 g, Rear: DT Swiss ARC 1100, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim material: Carbon
|
|---|
| Tires
|
Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 294 g | Continental Aero 111, Width: 26 mm, Weight: 246 g
|
|---|
| Disc Rotors
|
SRAM Paceline X, Size: 140 mm, Weight: 110 g | SRAM Paceline X, Size: 160 mm, Weight: 134 g
|
|---|
