2026 Canyon Speedmax CF 7 Di2 Race TT
Your shopping cart is empty!
Product Description

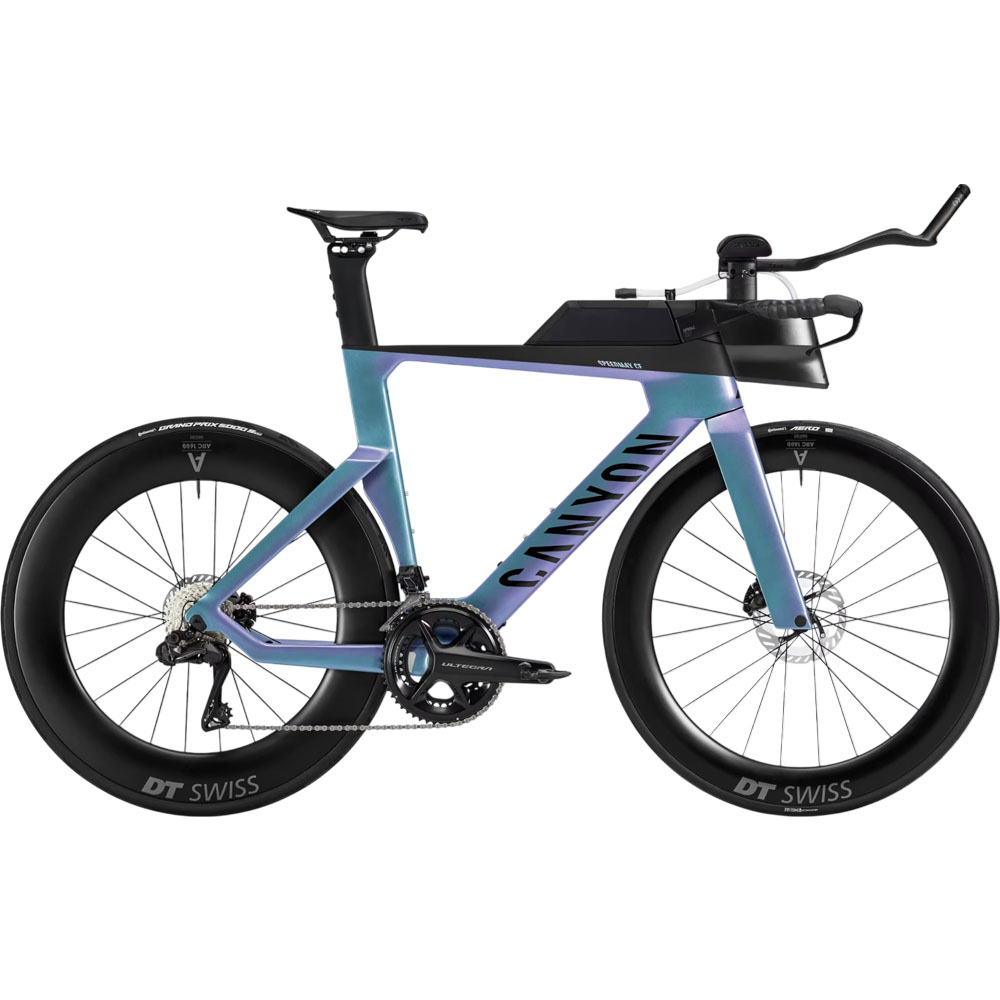

2026 Canyon Speedmax CF 7 Di2 Race TT
An adjustable, integrated aero carbon cockpit
With fully integrated cable routing, stepless extension tilt adjustment, and premium one-piece carbon construction, this is the most streamlined, integrated, and adjustable Speedmax CF cockpit ever. To save extra watts, the cockpit interfaces neatly with the frame and is compatible with our dedicated aero-optimised front hydration system.
Streamlined hydration system
Enjoy 750 ml of rapid-access hydration with the Speedmax CF’s Front Hydration System, aero optimized in conjunction with the head tube for maximum aerodynamic performance. Using the integrated magnet, attach the drinking straw to the extensions for instant access, or onto the top tube for maximum aero efficiency. Cleaning is easy – just remove and re-mount with a single click – and the system comes with an integrated computer mount too.
Aerodynamic seatstays
With forms inherited from our top-line Speedmax CF SLX and CFR platforms, we designed the seatstays of the Speedmax using advanced CFD technology and wind tunnel testing. The outcome? The latest Speedmax, one of the most aero triathlon bikes ever created.
Bento box
In triathlon, having quick and easy access to your nutrition is key. That’s why we place a hard-shell Bento box on the tope tube, right at your fingertips. Equipped with hinged lid for optimum durability and ease-of-use, this is the ideal place for storing your gels and bars.
SPECIFICATION
| FRAME |
Canyon Speedmax CF, Axle dimension: 12x142 mm, Tyre clearance: 30 mm, Material: Carbon (CF), Weight: 1,340 g
BB Standard: BSA, 68mm, Threaded Tire Clearance: 30c Colors: Black Mirage/Spirit Moon |
|---|---|
| FORK | Speedmax fork, Fork steer tube diameter: 1 1/8", Tyre clearance: 30 mm, Weight: 576 g |
| Bottom Bracket | Shimano Pressfit BB-RS500, Bottom bracket standard: PF 86, Weight: 81 g |
| Handlebar | Profile Design Extension |
| Saddle | Fizik Transiro Aeris R5 Long Distance, Gender: Unisex, Weight: 223 g |
| Seatpost |
Canyon SP0048 Aero Seatpost, Speedmax time trial seatpost, deep profile, large adjustment range, UCI compliant., Weight: 300 g
Type: Rigid |
| Pedals | None included |
| Rear Derailleur | Shimano 105 Di2, Weight: 301 g |
| Front Derailleur | Shimano 105 Di2 FD-R7150, Weight: 138 g |
| Crank | Shimano 105 R7100, Number of chainrings: 2 | Shimano 4iiii Powermeter crank, Number of chainrings: 2 |
| Power Meter | Shimano 105 R7100, Number of chainrings: 2 | Shimano 4iiii Powermeter crank, Number of chainrings: 2 |
| Shifters | Shimano Dura-Ace Di2 R9160 Remote TT, Weight: 19 g |
| Cassette | Shimano 105 R7101 11-34 12s, Number of sprockets: 12, Range: 11-34 |
| Chain | Shimano CN-M7100 12s |
| Brakes |
Shimano Dura-Ace, Number of pistons: 2, Weight: 277 g | Shimano Dura-Ace, Number of pistons: 2, Weight: 278 g
Type: Shimano Dura-Ace Hydraulic Disc |
| Brake Levers | Shimano Dura-Ace, Number of pistons: 2, Weight: 277 g | Shimano Dura-Ace, Number of pistons: 2, Weight: 278 g |
| Rims | Front: DT Swiss ARC 1600, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 65 mm, Inner width: 22 mm, Rim material: Carbon, Weight: 812 g, Rear: DT Swiss ARC 1600 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 85 mm, Rim material: Carbon |
| Tires | Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 294 g | Continental Aero 111, Width: 26 mm, Weight: 246 g |
| Disc Rotors | Shimano Bremsscheibe, Size: 140 mm, Weight: 134 g | Shimano SM-RT70, Size: 160 mm, Weight: 147 g |
