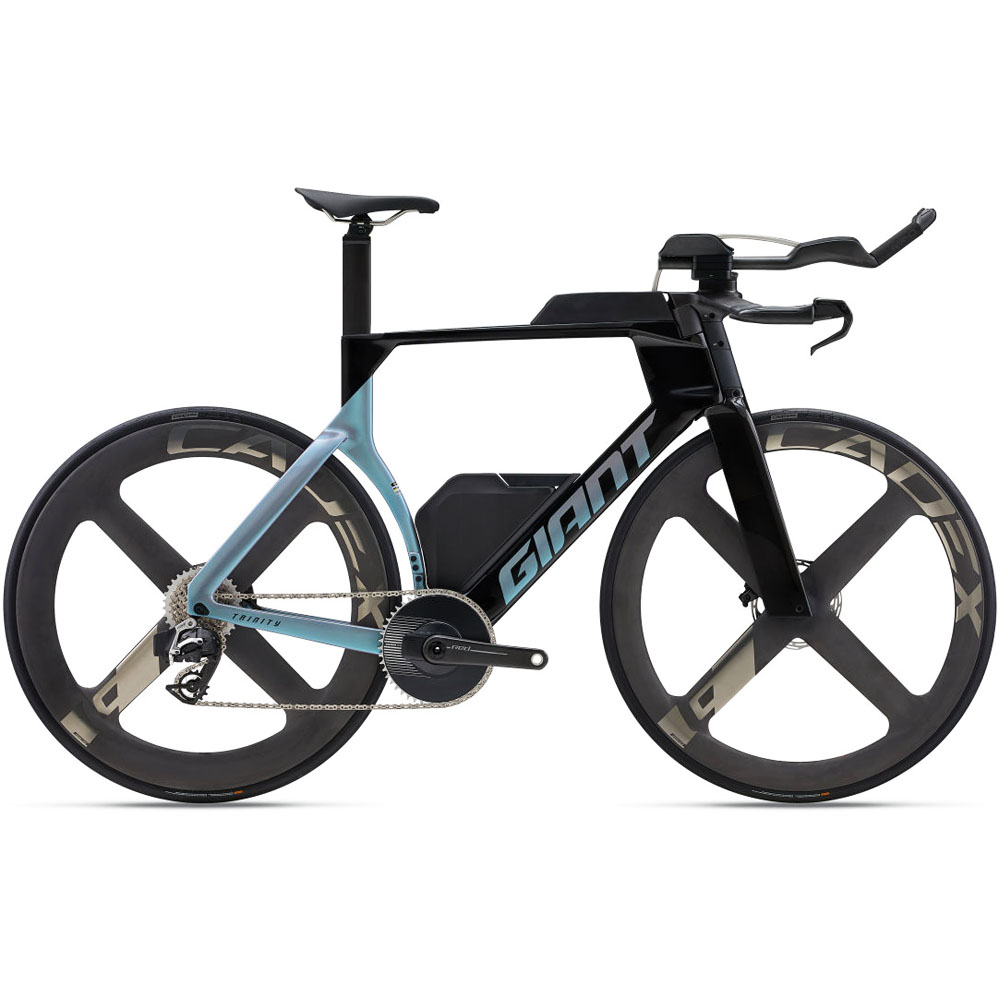

2025 Giant Trinity Advanced SL 0 Triathlon Bike

2025 Giant Trinity Advanced SL 0 Triathlon Bike

KEY PERFORMANCE FACTORS

FULL-SPEED DYNAMICS

All-new composite frameset designed for flat-out speed and pinpoint control when racing against the clock. 558g less weight for faster climbing, integrated disc brakes for confident cornering and descending, added compliance for smoother ride performance, plus an integrated bento box and hydration straw to help riders produce full power without disturbing their riding position.

ULTIMATE AERO EFFICIENCY

AeroSystem Shaping Technology with truncated ellipse tubing for a 5.9-watt aero advantage and greater stiffness-to-weight ratio over previous generation Trinity. In addition, the hydration reservoir, bottles and bento box form an aero-optimized, integrated fueling system.

PERSONALIZED FIT

With a far greater range of adjustability compared to previous Trinity models—including four seatpost offset positions (51mm range) and 24x more armrest positioning options (stack, reach, angle and width)—it’s easier than ever to dial in fit for all body types and any riding position using simple two-bolt mechanisms.

SPECIFICATION

FRAME	Advanced SL-Grade Composite, 12x142mm thru-axle, disc
FORK	Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc
Handlebar	AeroDrive base bar
Stem	AeroDrive integrated stem
Seatpost	Trinity Composite
Saddle	Giant Contact SL Tri
Arm Rest Kit	Sync rest armset
Extension Bars	10 and 15-degree extension wedge
Shifters	SRAM eTap AXS WireBlips - extension and basebar mounted
Rear Derailleur	SRAM RED AXS E1
Brakes	SRAM S-900 Aero hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm
Brake Levers	SRAM S-900 Aero
Cassette	SRAM RED E1, 12-speed, 10x33
Chain	SRAM RED E1
Crankset	SRAM RED 1 E1 AXS, 48t with SRAM power meter XS:160mm, S:165mm, M:170mm, L:172.5mm
Bottom Bracket	SRAM DUB, press fit
Rims	CADEX 4-Spoke Disc WheelSystem
Hubs	[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes	CADEX 4-Spoke Disc WheelSystem
Tires	CADEX Aero, tubeless, 700x25c (26.5mm), folding
Extras	TT storage, hydration kit, computer mount, tubeless prepared, 30mm max tire size
Max Tire Clearance	30mm
